ASV transformer evacuation system is a quick start, big capacity of vacuum evacuating etc, widely used in vacuum smelting, welding, chemical, pharmaceutical and electric power system, particularly suitable for transformer vacuum operation.
Product Description

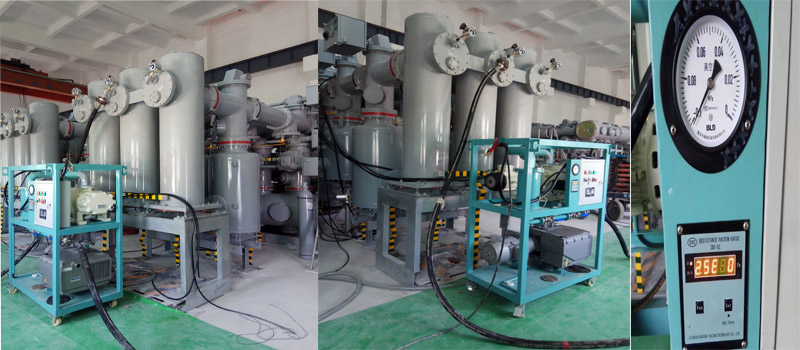

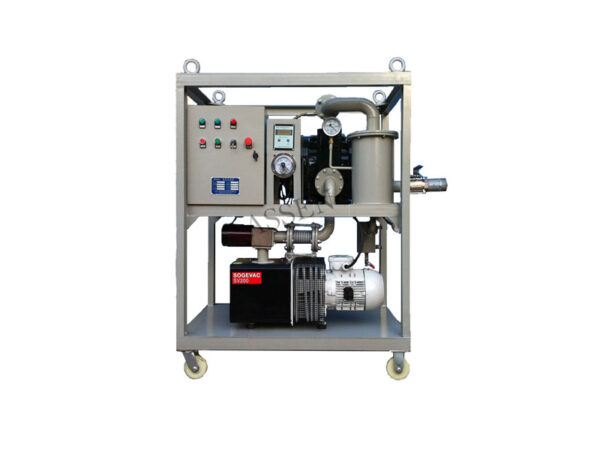

ASV Transformer Evacuation System Unit
Application
ASSEN has designed a transformer evacuation system(Vacuum Pumping System) that has efficient moisture condensers with an adequate cooling area that is placed in line with the vacuum pump. In case of non-availability of cold water circulation at the site, condensers are also provided with the facility of ice cups which aid to hold ice and improve the moisture condensation.
The transformer evacuation systems are robustly designed with vacuum pumps and booster pumps (ROOTS pump) to handle large volumes of moisture in transformers.
Features
1. Simple structure and convenience in operation.
2. The forward pump adopts the original world’s leading vacuum pump imported from Europe, and customers can choose the imported Roots pump or homemade ones according to their purchasing power. The pump can attain high working vacuity at a very fast pumping speed.
3.Equipped with Pipeline filter so as to keep large impurities out of the system, not damaging the vacuum pump.
4.Adopt a standard closed type structure suitable for outside operation.

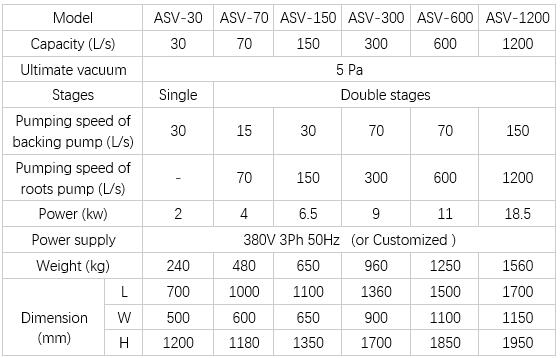

Transformer Evacuation System’s Technical Data
Optional mode:
- The whole structure can be made into mobile and fixed.
- Can be made into fully enclosed, open, concealed.
- Optional PLC intelligent control, touch screen operation, and dynamic display according to user requirements.
