Product Description

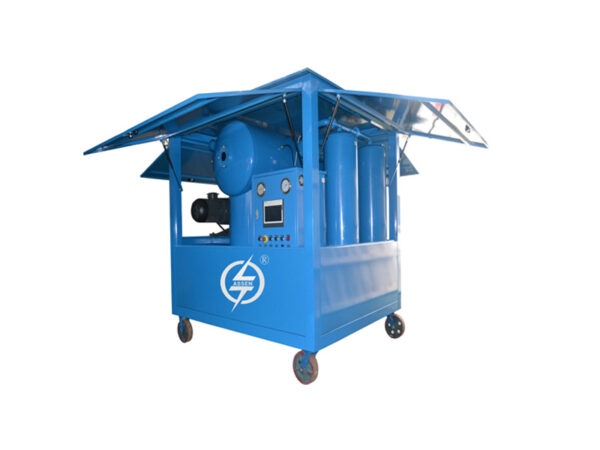

6000L/hr Transformer Oil Recycling Plant with Reliable Weather-proof Canopy

Application:
ASSEN ZYD Transformer Oil Recycling Machine is portable maintenance equipment, it is a process the reduces, or in fact, eliminates all the physical contaminants from oils by means of physical processes such as oil filtration, dehumidification, and degasification. ZYD transformer oil reclamation process effectively removes all those particles that are larger than 0.1 microns as well as most of the dissolved water and gases in the oil.

After treatment

Features:

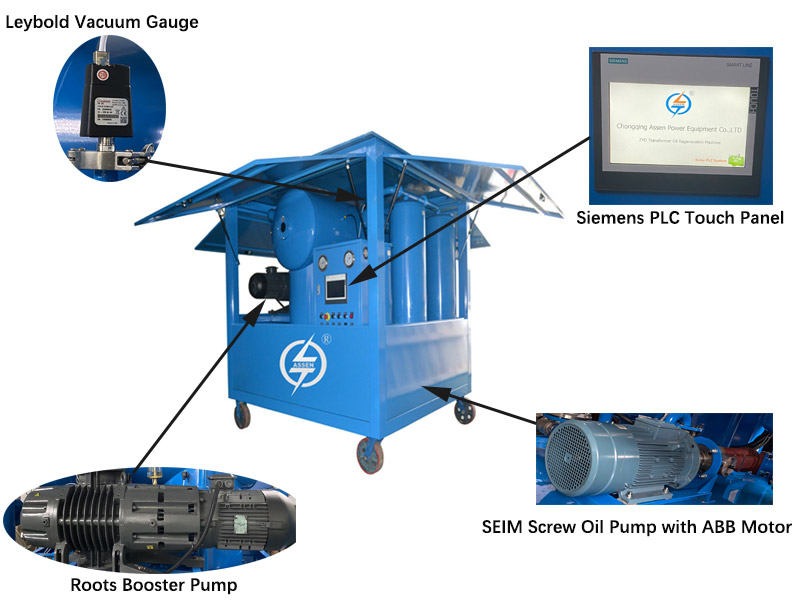

1.ZYD machine is equipped with two-stage vacuum pumping speed and advanced dewatering and degassing system. It adopts large-area three-dimensional flashing technology to remove harmful components such as moisture, impurities, and hydrocarbons in oil quickly and efficiently, and improve the flashpoint and dielectric strength of insulating oil.

2.The ZYD transformer oil recycling equipment is capable of oiling and vacuuming the transformer body during installation or overhaul.

3.ZYD is equipped with a high precision filtration system, which uses high-quality filter elements and multi-stage filtration step-by-step encryption to effectively remove mechanical impurities in the oil and configure automatic detection of filter contamination.

4.ZYD machine is equipped advanced automatic thermostat control system, automatic liquid level control system, automatic defoaming control system, and automatic pressure protection system to ensure high-performance operation of the equipment.

5.ZYD machine is user-friendly, low noise, easy to operate, long maintenance interval, low energy consumption, and low operating cost.

6. ZYD machine is equipped with an interlocking safety protection system, which is connected with an oil discharge system, vacuum dehydration system, and heating system to avoid the adverse effects caused by misoperation.

Technical Parameters:

We also have several plans for your choice;

1.Optional P.L.C. intelligent panel control, touch screen operation, and dynamic display according to user needs.

2.Optional Online PPM Meter, Optional flow meter with accumulator function.

3.Optional frequency converter, you can adjust the flow according to your needs

4.Optional external port design for transformer vacuum pumping

5.The whole structure can be made into mobile, fixed, fully enclosed, concealed, canvas, open type.

6.Optional three-stage high vacuum system for higher vacuum degree work.
